DIY vs Professional Container Home Plans: A 2025 Ultimate Guide

To truly understand the choice between diy vs professional container home plans, we must first define what each entails. The difference is much more than aesthetics; it’s a matter of technical scope and legal responsibility.

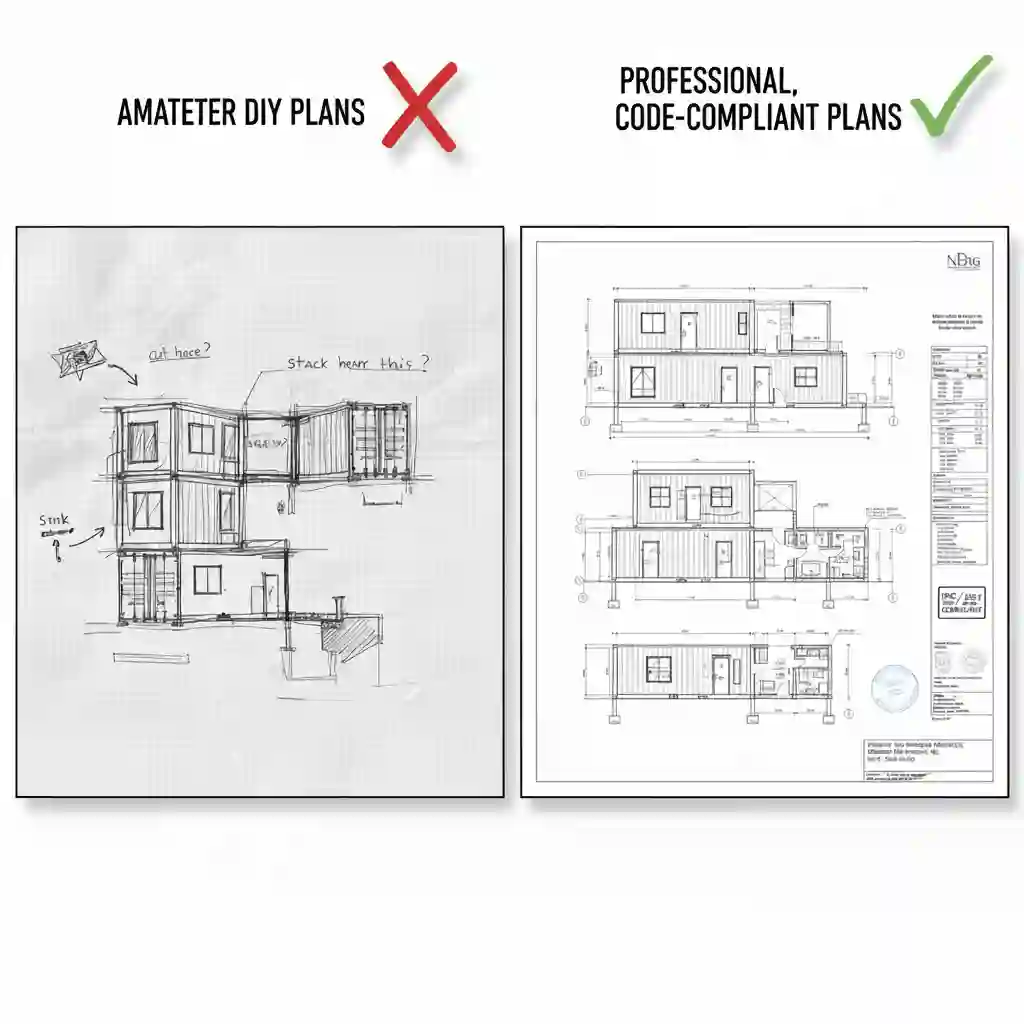

DIY Plans (The Unengineered Sketch)

DIY plans, or hobbyist-level plans, are typically generated using simple 3D modeling software or even basic drafting tools. They focus primarily on the aesthetic layout of the rooms, window placements, and interior flow. Crucially, they lack the underlying engineering data and detailed code citations required for a legal submission.

Typical DIY deliverables include:

• Floor plans with basic dimensions.
• Elevations showing external appearance.
• A few unscaled interior sections.
• A generic bill of materials (BOM).

These plans might be excellent for visualizing your project and clarifying your needs, but they almost universally fail to satisfy the scrutiny of a building department review board, resulting in immediate rejection or a protracted and expensive revision process. They are essentially architectural concepts, not construction documents.

Professional Plans (The Permit-Ready Package)

Professional container home plans are a complete set of construction documents created by licensed architects and/or structural engineers. They integrate the architectural design with all the necessary technical specifications and code compliance data required by local and state jurisdictions, often adhering to the standards set forth by the IBC Section 3115 which specifically addresses the modification of Intermodal Shipping Containers.

Key components of a professional plan package, such as those we offer, include:

• Foundation Plans: Detailed drawings for options like slab or pier foundations, complete with load-bearing calculations and anchorage specifications.
• Structural Analysis: Cut and splice plans, steel reinforcement details, wind/seismic load-path engineering, and confirmation that the structural alterations maintain or exceed the original container strength.
• Code Compliance Notes: Specific notations citing applicable sections of the IRC and IBC for fire-resistance, egress, and accessibility.
• MEP Drawings: Comprehensive drawings for Mechanical, Electrical, and Plumbing systems, showing routing, sizing, and material specs compliant with IRC Chapters 25 through 43.
• Exterior Envelope Details: Detailed wall sections showing material layers, moisture barrier placement, air sealing details, and thermal performance calculations in line with IRC Chapter 11.

The core of the diy vs professional container home plans debate centers on risk. When a DIY plan is submitted, the onus is entirely on the owner to prove that the proposed modifications are structurally safe and code compliant. This is the stage where most self-drafted projects collapse under scrutiny. Here are the most common and costly failures.

Structural Integrity and Load Path Documentation

A standard shipping container is structurally sound only when its original factory design—a rigid steel cage transferring loads through the eight corner castings—remains intact. The minute you cut a large opening (for a window, door, or multi-container coupling), you compromise the original load-bearing capability. This is particularly true if the cuts are near the vertical elements. DIY plans often ignore this fundamental principle, simply “adding steel” without calculating the necessary point-load transfers or designing robust replacement headers.

Compliance with Specific Wind, Seismic, and Snow Loads

Every location in the United States has unique climatic and geographic design criteria. A structure in Florida must withstand hurricane-force wind loads, while one in California requires rigorous seismic reinforcement. DIY plans use generic maximums that rarely match the actual localized, risk-based loading requirements outlined in IRC R301.2. The local building official requires calculations demonstrating how all loads—dead, live, roof, snow, wind, and seismic—are transferred from their point of origin to the foundation.

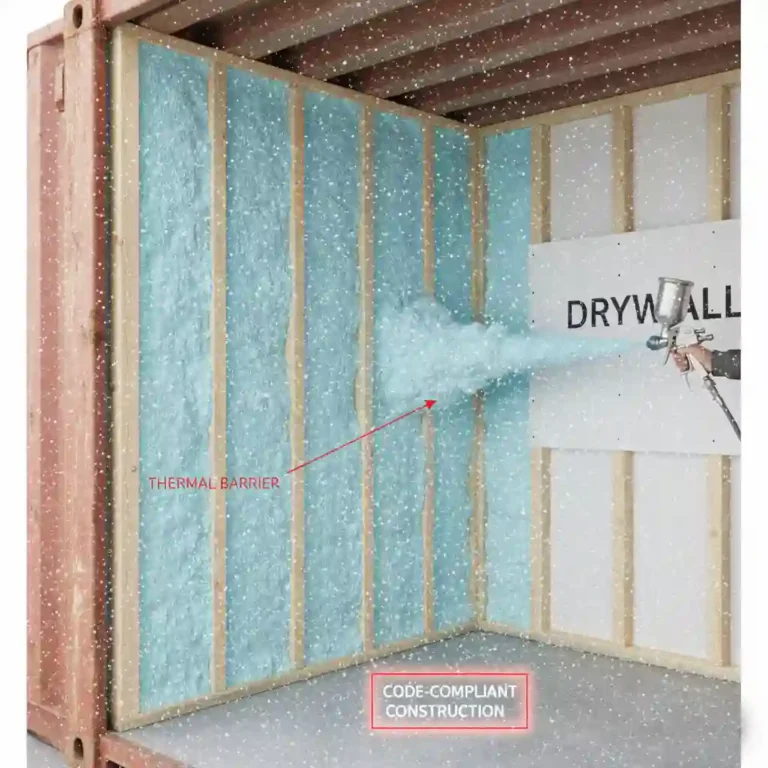

Building Envelope and Thermal Requirements (IRC Chapter 11)

Container steel is an extremely poor thermal insulator, necessitating a highly detailed thermal envelope solution. DIY plans often oversimplify this with generalized insulation recommendations, ignoring the stringent R-value and Continuous Insulation (C.I.) requirements mandated by IRC Chapter 11.

• Thermal Bridging: The container’s steel ribs and frame create continuous thermal bridges, which must be addressed by installing insulation continuously across all structural members (C.I.). DIY plans almost always overlook the engineering required to document this compliance.
• Air Leakage: Compliance requires testing the home’s air infiltration rate to meet a maximum standard, a detail that must be documented on the plans (IRC N1102.4.1.2). DIY plans rarely include the necessary air-sealing strategy or a plan for the mandatory blower door test.

Water and Moisture Management

Moisture is the silent killer of any home. Containers are designed to resist water from the outside but are susceptible to internal condensation due to temperature differentials. A key component of professional plans is a robust vapor retarder strategy (IRC R702.7). DIY plans often use interior insulation without considering the dew point, leading to hidden mold and rust between the steel and the interior finish. Furthermore, in flood-prone areas, compliance with IRC R322 requires specific structural elevation and flood damage-resistant materials, a highly specialized engineering task nearly impossible to DIY accurately.

The initial cost savings of cheap or free DIY plans are quickly eclipsed by the hidden costs of delay and mandatory professional intervention later in the process. The core difference between diy vs professional container home plans is risk-transfer: professional plans move the technical risk from you to the engineer and architect.

Time as a Hidden Cost: The Permit Rejection Cycle

The building permit process is designed to vet documents, not educate the applicant. A deficient DIY submission initiates a costly Rework Cycle characterized by:

1. Rejection: The initial submission is rejected for missing structural, thermal, or life-safety documentation.
2. Re-engagement: You hire a local Professional Engineer (PE) to correct the plans. This is challenging because local PEs prefer to work from scratch rather than assume liability for flawed amateur designs.
3. Rework: The PE must essentially re-engineer the entire concept, charging an hourly rate often significantly higher than the cost of starting with a compliant plan set.
4. Resubmission: Wait times restart, potentially months later.

This cycle turns a hoped-for 4-6 week approval into a 6-12 month nightmare, incurring lost time, expired contractor quotes, and added expense for professional rescue. The true “cost” of a free plan becomes measured in lost time and exponential frustration.

Rework and “Professional Rescue” Costs

The price of a professional rescue job often exceeds the original investment in a quality, permit-ready plan set. Why? Because the engineer must validate and re-document every assumption in the DIY design:

• They must confirm the original steel structure is still viable after the cuts indicated in the DIY plans.
• They must calculate the exact steel reinforcement needed for every opening and beam, a process called load-path continuity analysis, which is labor-intensive and highly specialized.
• They must detail the non-conventional elements of a container structure to satisfy the building department, something rarely addressed in generic CAD programs.

Comprehensive Comparison Table: DIY vs. Pro Plans

The goal of the planning stage is not merely to design a container home, but to create a legal document that proves its safety and durability to the local Authority Having Jurisdiction (AHJ). When considering diy vs professional container home plans, remember that the AHJ relies heavily on professional documentation to accept the inherently non-conventional nature of intermodal steel construction.

The Non-Negotiable: The Professional Engineer (PE) Stamp

The single most decisive factor differentiating diy vs professional container home plans is the ability to acquire a PE stamp. For non-traditional construction like a container home, a local licensed Professional Engineer (PE) must review, validate, and stamp the plans. This legally transfers the risk and confirms the structural viability of the modified container shell.

IBC vs. IRC Applicability for Container Structures

While the IRC is the primary code for one- and two-family dwellings, the unique fabrication methods of container homes push them into the realm of the IBC for non-conventional structural elements. Your plans must reconcile these two primary code bodies.

The IBC has established a precedent for containers in its sections covering Special Construction. Specifically, the modification of intermodal shipping containers is often treated under IBC Section 3115, which dictates that the original container design (a transportation vessel) must be re-engineered to meet the more rigorous standards of a permanent building structure. Professional plans integrate this documentation upfront. For example, the IRC requires all load-resisting elements to provide a complete load path to the foundation (IRC R301.1). This is non-negotiable and requires detailed diagrams and calculations that go far beyond any DIY sketch.

Understanding Local Jurisdiction Requirements

Beyond the model codes (IRC/IBC), every local jurisdiction may adopt amendments and apply specific criteria based on its geography (e.g., California’s stringent seismic requirements or Florida’s wind loading requirements). We always recommend consulting your local building department to verify all requirements and amendments before finalizing your plans. Starting with professionally prepared plans minimizes the gaps between the national code foundation and your specific local needs, facilitating a smooth transition to final PE approval and permitting.

The structural phase is the most common failure point for DIY vs professional container home plans. A professional approach ensures every modification is supported by verifiable structural science, as required by the code. We rely on established engineering principles to maintain the structural integrity of the steel “shell” itself.

Corner Casting and Jacking Loads

The container’s corner castings are its main load-bearing points, transferring vertical and lateral loads. Professional plans detail the exact interface of the container corner posts with the foundation and the necessary steel plates and anchors to ensure proper load transfer. This includes calculating the structural capacity of the modified container frame to handle all imposed loads, per IRC R301.1.

Foundation Details and Anchorage

The foundation is the critical link in the complete load path and must be designed for both vertical and lateral (uplift/shear) loads. DIY plans often use generic foundation suggestions (piers or slab) without engineering for the local soil or load conditions. Professional plans include detailed specifications for anchorage to resist uplift forces from wind and seismic events. This detail covers everything from anchor bolt size and embedment depth in concrete to rebar scheduling and specific concrete mix required for the foundation, adhering to the requirements of IRC Chapter 4.

The determination of whether a shallow foundation (slab, strip footing) or deep foundation (drilled shaft, piles) is needed must be based on a geotechnical analysis for the site, as addressed in general in the IBC (Chapter 18).

Structural Design for Multi-Container and Stacked Designs

For more complex homes using multiple or stacked containers, the differences between diy vs professional container home plans are astronomical. Multi-container and stacked designs introduce complex engineering challenges:

• Girting/Coupling: Connecting two containers horizontally requires specific structural connections (girt) to manage differential movement, which is entirely missed in DIY concepts.
• Vertical Stacking: Stacking requires verifying that the lower container’s structural capacity has not been compromised by cuts, as it must bear the full load of the upper container(s). This is purely a function of complex engineered design that must satisfy IBC or IRC R301.1.3 requirements.

Wall Bracing and Shear Wall Specifications (IRC Chapter 6)

When walls are opened for windows or doors, the remaining wall sections must be analyzed as shear walls or braced wall panels to resist lateral loads from wind and seismic forces. While traditional wood-frame homes follow prescriptive tables (IRC Chapter 6), container homes require a detailed analysis of the remaining steel structure and any added structural framing. A professional plan will explicitly label these critical sections as shear walls, provide detailed fastener schedules, and specify the materials required to maintain lateral stability, preventing catastrophic failure in a high-wind event.

Beyond the structural frame, building systems must adhere to strict life safety and habitability standards. The IRC dedicates entire parts to these systems, demonstrating their importance. A DIY plan rarely includes the comprehensive detail needed to prove compliance for these complex systems.

HVAC and Ventilation (IRC Chapter 15)

Habitable rooms must be provided with minimum ventilation. This is regulated by the IRC’s mechanical chapters. For instance, exhaust systems for kitchens and bathrooms must comply with IRC Chapter 15 (Exhaust Systems). More critically, a professional design accounts for the home’s heating and cooling needs (HVAC) by performing load calculations (ACCA Manual J) to correctly size the equipment, thus meeting the energy efficiency goals of IRC Chapter 11. Undersized systems are a hidden cost in poor DIY design.

Plumbing and Sanitation (IRC Chapters 25-33)

Plumbing systems must ensure proper sanitary drainage, water supply, and venting to prevent sewer gas intrusion and maintain fixture function. IRC Chapters 25 through 33 cover these complex piping systems. Amateur plans typically only show fixture locations, omitting crucial details like pipe sizing, trap and vent connections, and cross-connection protection (IRC P2902). A professional plan includes precise layouts for rough-in inspections (IRC R109.1.2), detailing everything from slopes for drainage (IRC P3005.1) to water heater anchorage (IRC M1307.2).

Electrical and Wiring (IRC Chapters 34-43)

Electrical safety is paramount. IRC Chapters 34 through 43 adopt the National Electrical Code (NFPA 70) to ensure system safety. This covers everything from service sizing (IRC Chapter 36) to proper grounding, bonding, and arc-fault protection (IRC E3902). The electrical design is complex and must account for load calculations to correctly size service entrances and branch circuits. A DIY plan provides no assurance that wire sizes match loads or that all required receptacles and lighting outlets (IRC E3901) are correctly placed to comply with safety codes. This deficiency is a non-starter for any electrical inspection.

The choice between DIY vs professional container home plans is fundamentally a choice between accepting high, unknown risk for a small initial saving versus investing smartly for predictable success. DIY planning can be a fantastic way to define your spatial needs and architectural vision, but when it comes time to submit for a permit, amateur drawings simply cannot compete with the detailed structural and compliance documentation of a professional plan set.

Professional plans save you money and time in the long run by significantly reducing the chances of a costly, frustrating rework cycle, providing immediate credibility with your local building department, and ensuring the final structure is safe, insurable, and compliant. They offer the necessary engineering proof that your unique container home meets the minimum requirements of the IRC and IBC, turning a non-conventional vision into a fully permitted reality.

If you find yourself loving one of our plans but need to make a small change—perhaps relocate a window or adjust a door swing—we understand! We offer a specialized plan modification service after purchase to help you customize the design while ensuring its compliance remains intact. Just contact us for a quote!
